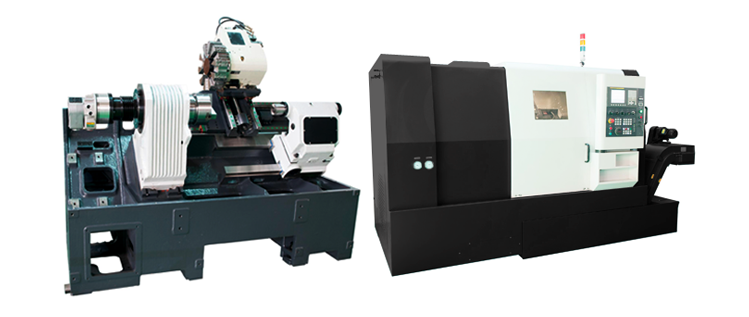

PRODUCT SPECIFICATION |
| Description |
Unit |
GL-L6 |
| Travel |
Max. Swing Over Bed |
mm |
500 |
| Max. Swing Over Cross Slide |
mm |
300 |

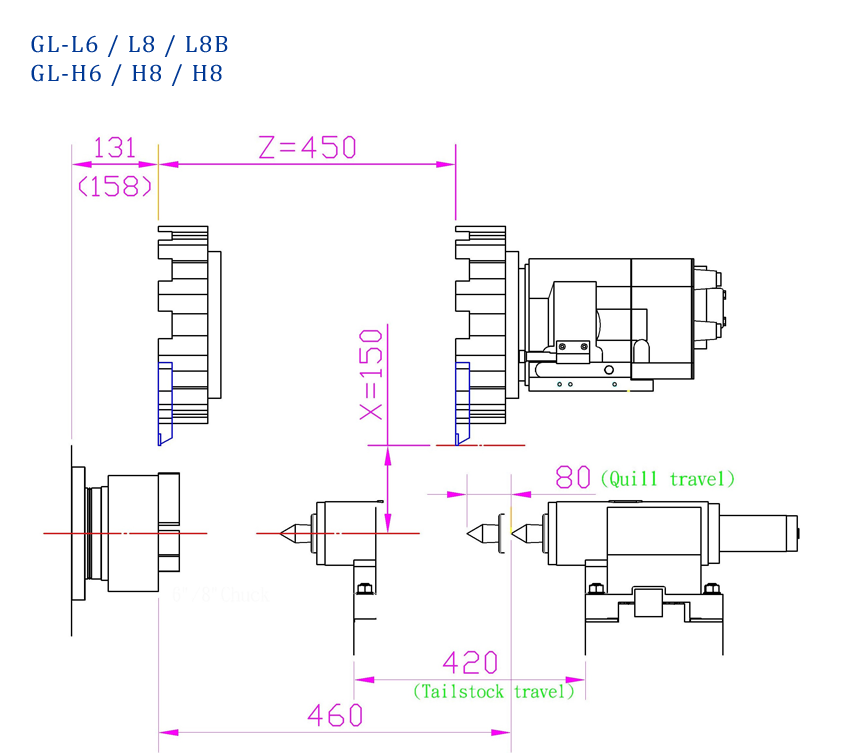

| Distance Between Centers |
mm |
460 |
| Max. Turning Length |
mm |
450 |
| Max. Turning Diameter |
mm |
300 |
| Max. Bar Diameter |
mm |
42 |

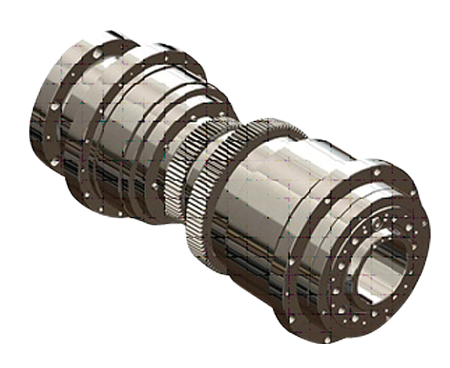

| Spindle |
Hyd. Chuck Diameter |
lnch |
6" |
| Spindle Nose |
Type |
A2-5 |
| Bearing Type |
Type |
7016 |
| Spindle Bearing Dia. |
mm |
80 |
| Spindle Motor |
HP |
std:11/opt:15 |
| Spindle Speed |
rpm |
6000 |

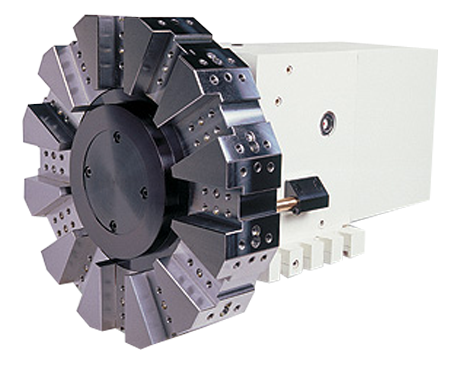

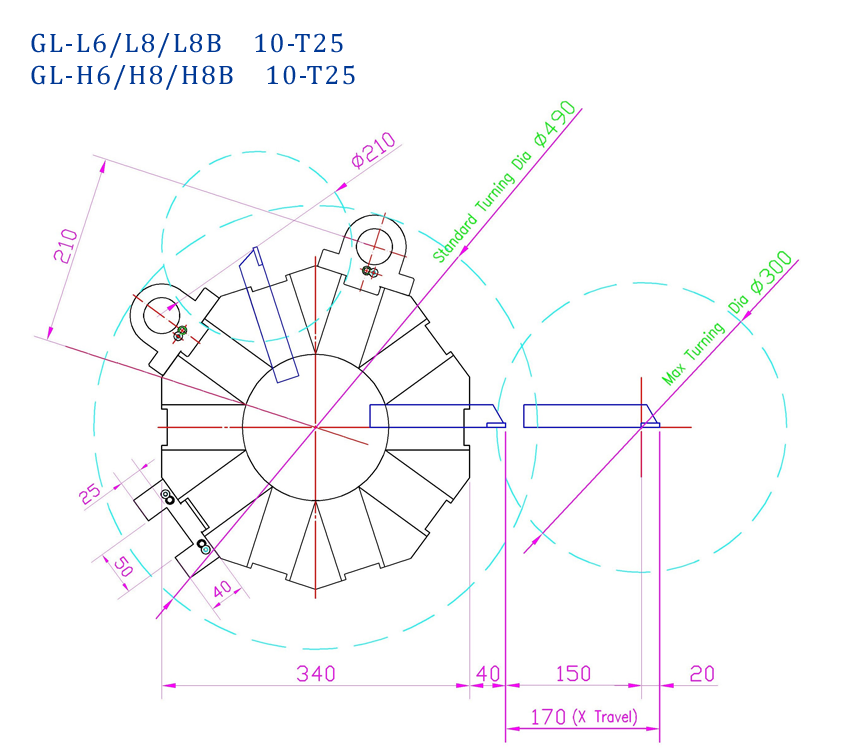

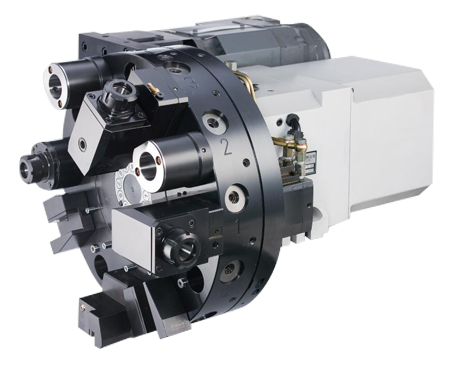

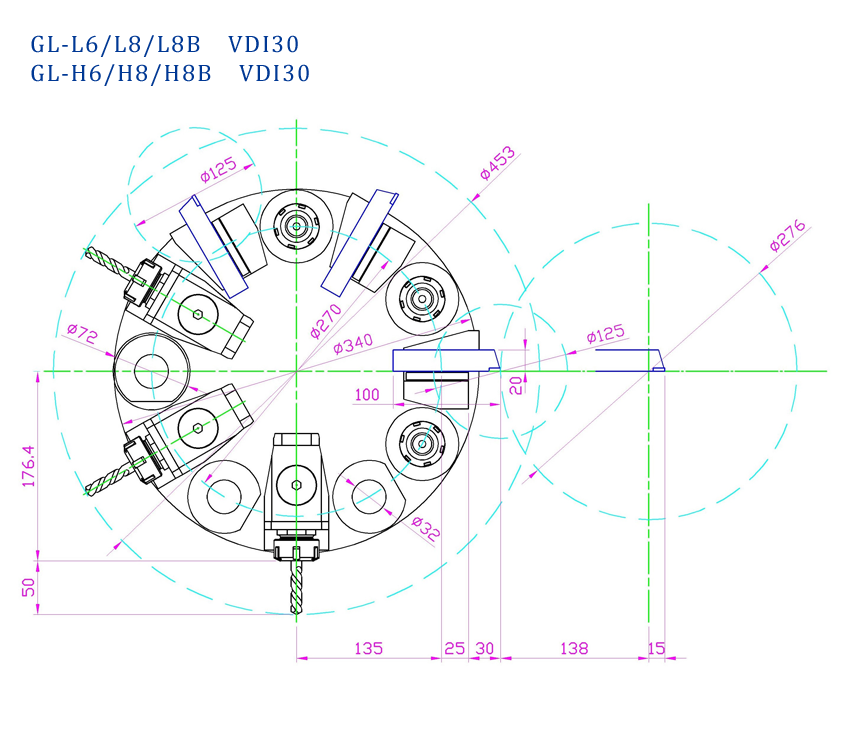

| Turret |
Number of Tools |
pcs |
std:10/opt:8 |
| Square Tool Shank Size |
mm |
25 |
| Round Tool Shank Size |
mm |
40(VDI30) |
| X-Axis |
Travel |
mm |
150+20 |
| Rapid Traverse Rate |
M/min |
30 |
| Servo Motor |
kw |
std:1.2/opt:1.8 |
| Z-Axis |
Travel |
mm |
450 |
| Rapid Traverse Rate |
M/min |
30 |
| Servo Motor |
kw |
std:1.8/opt:2.5 |
| Servo Motor |
Function |
Type |
Programmable |
| Quilt Diameter |
mm |
80 |
| Morse Slideway |
Type |
MT4 |
| X-Axis Slideway |
Type |
Linear Way(Roller) |
| Z-Axis Slideway |
Type |
Linear Way(Roller) |
| Coolant Tank Capacity |
Liter |
100 |
| Hydraulic Pump Motor |
HP |
std:1HP/opt:1.3HP |
| Size |
Floor Space |
mm |
3200*1600*1800 |
| Machine Weight |
kg |
4200 |
|
